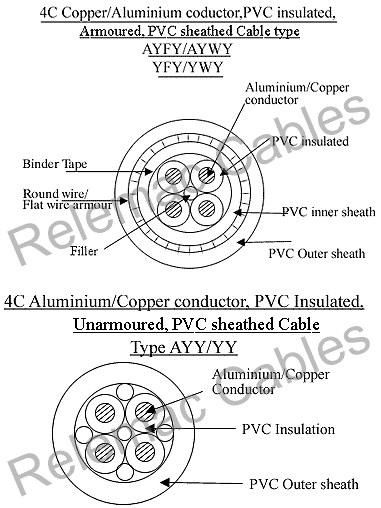

PVC Cables >> 650 1100V 4 Core Aluminium Conductor PVC Insulated Sheathed Unarmoured AYY Armoured AYFY AYWY

Product Type >> AYY/AYFY/AYWY

Nominal Area of Cond'tor Sq.mm	Nominal Thickness of PVC ins. mm	Unarmoured		Armoured			Max.D.C. Conductor Resistance at 20°C Ohm/KM	A.C.Current Rating
		Appx Overall Dia. mm	Appx. wt Kg/km	Nominal Armour Size mm W F	Appx Overall Dia. mm	Appx wt Kg/km		In Air at 40°C		In Ground at 30°C
		Appx Overall Dia. mm	Appx. wt Kg/km	Nominal Armour Size mm W F	Appx Overall Dia. mm	Appx wt Kg/km		PVC insulation Amps	HRPVC insulation Amps	PVC insulation Amps	HRPVC insulation Amps
4	1.0	16	280	1.4	20	690	7.410	23	28	28	32
6	1.0	17	340	1.4	21	780	4.610	30	36	35	40
10	1.0	19	415	4X0.8	22	720	3.080	40	48	46	52
16	1.0	23	600	4X0.8	26	1010	1.910	51	61	60	68
25	1.2	25	700	4X0.8	26	1000	1.200	70	84	76	87
35	1.2	27	850	4X0.8	28	1200	0.868	86	103	92	105
50	1.4	32	1150	4X0.8	33	1550	0.641	105	126	110	125
70	1.4	36	1475	4X0.8	37	1930	0.443	130	156	135	154
95	1.6	41	1960	4X0.8	42	2460	0.320	155	186	165	188
120	1.6	43	2300	4X0.8	44	2880	0.253	180	216	185	211
150	1.8	48	2800	4X0.8	48	3390	0.206	205	246	210	239
185	2.0	53	3490	4X0.8	54	4120	0.164	240	288	235	268
240	2.2	59	4425	4X0.8	61	5200	0.125	280	336	275	314
300	2.4	66	5500	4X0.8	67	6350	0.100	315	378	305	348
400	2.6	74	6870	4X0.8	75	7870	0.0778	375	450	335	382
